■産品概述product overview

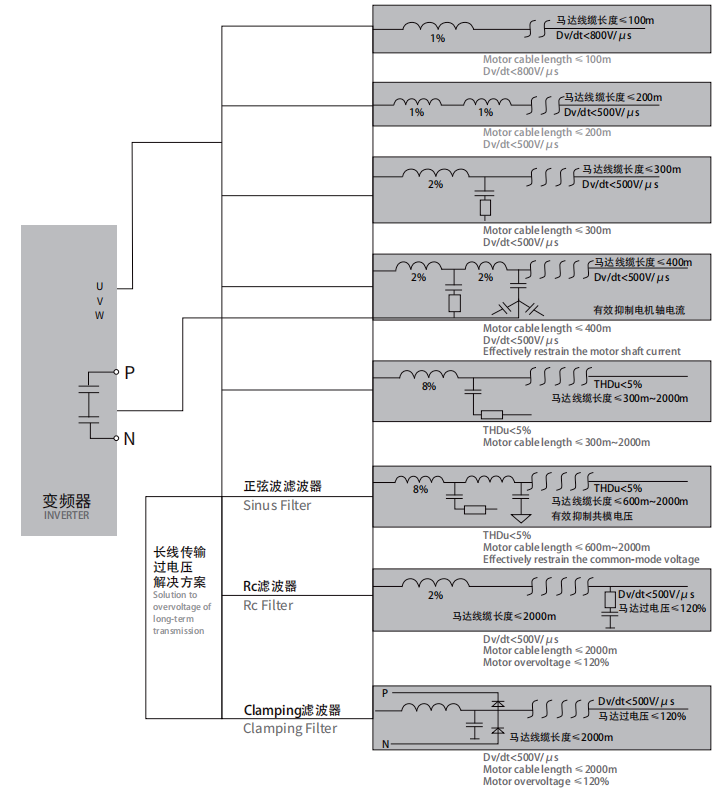

安裝在變頻器輸出端，用于限制變頻器與電機連接電纜的容性充電(dià¥n)電流，鈍化變頻器輸出的PWM波的電壓上升率。電機§(jī)電纜長度超過一定值時，建議在變頻器與電機(j®ī)之間插入一個電機電抗器用于補償在長導線時的(d®e)電容再充電電流。此長度決定于變頻器的額定值以及電機電纜的(d★e)類型。

Installed at the output end ofthe frequency converter,it is used to  limit the capacitive chargingcurrent of thecable connecting the frequency converter and↔ the motor,and to passivate thevoltage rise rate of the PWMwave output by the frequen☆cy converter.When the length ofthe motorcableexcee←ds a certain value,it is recommended to insert a motor reactor b∏etween the frequencyconverter and the motor.Used to compensate for ☆the recharging current of capacitors in longwires.This length depends® on the rated value of the frequency converter and the ty±pe of motorcable.

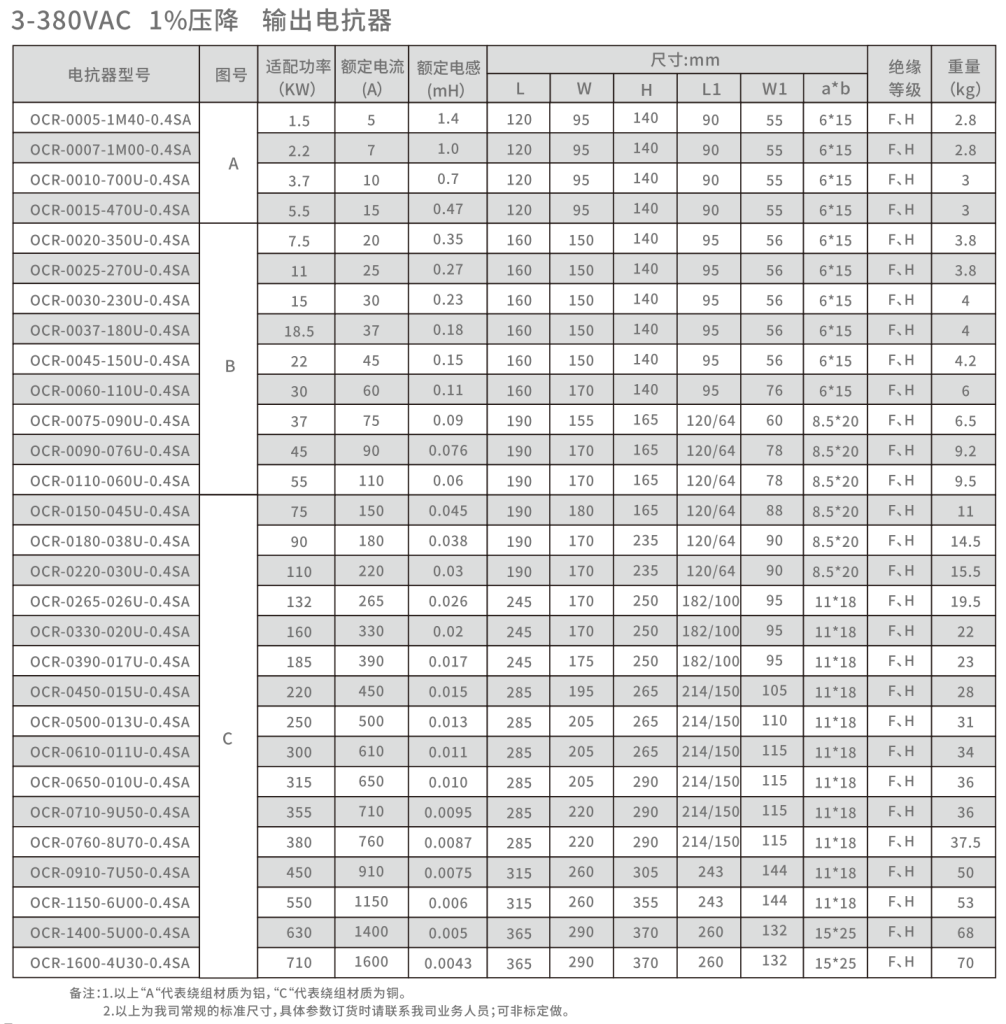

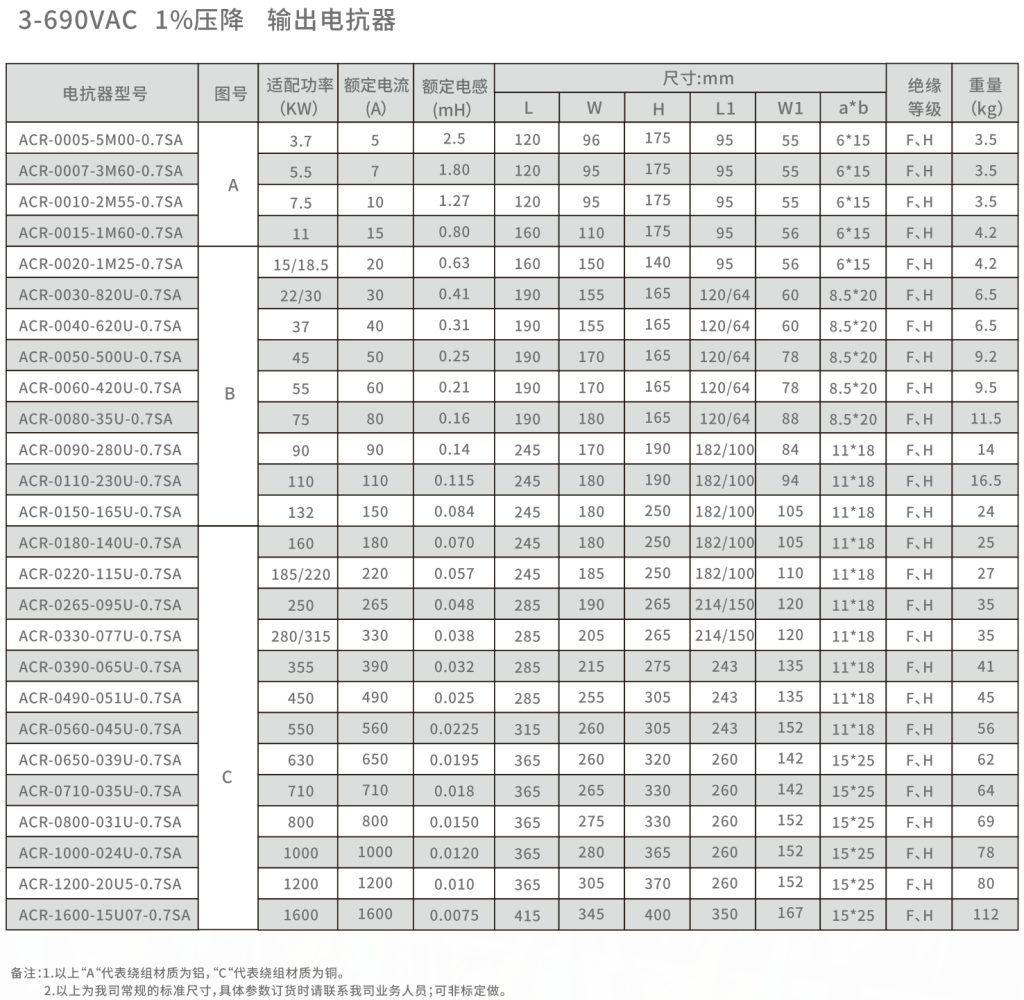

■技術規格Technical specifications
·工作電壓：220VAC-3300VAC
·工作頻率：50/60Hz.
·額定電流：3A-1600A
·載波頻率：2-8KHz.
·絕緣等級：classF,H
·使用環境：-10~+45℃,額定值不會降低。最高可達+55℃,在45℃以上，每升高1℃,額定<電流降低2%
·防護等級：IP00-IP22
·壓降：<4%大于此範圍會引起轉矩損失 ·最大電流：1.5×額定電(diàn£)流，持續60S ·噪音：小于等于65dB ·溫升：≤85K ·抗電強度：鐵芯-繞組3000VAC/50Hz/5mA/10S無飛(fēi¥)孤擊穿(工廠測試) ·絕綠電阻：1000VDC絕緣阻值≥100MO ↕·海拔高度不超過2000米 ·運行環境溫度-25℃-+45℃,相對濕度不超過90%δ ·周圍無有害氣體，無易燃易爆物品 ·周圍環境應有良好的通風條件，如裝在櫃內，應加裝通(±tōng)風設備

·Working voltage:220VAC-3300VAC ·Operating frequency:50/60HzRated current:3A-1600ACarrie&rfrequency:2-8KHz ·Insulation Class:ClassF,H ·Operating en↔vironment:-10-+45℃,rated value willnot decrease.Up to+55℃,above 45C,for every¥ 1℃increase,the rated current decreases by2% ·Protection level:I₽PO0-IP22Pressure drop:4%.Excedingthis range will caus<e torque lossMaximum current:1.5times rated current,lastingf↔or60seconds ·Noise:lesthan or equal to 65dB-Temperaturerise:≤85K ·Electrical strength:Iro↓ncore winding 3000VAC/50Hz/5mA/10S without flying fox br↔eakdown(factorytest) ·Insulationresistance:1000VDCinsulation resistance>1γ00MΩ
·Altitudenotexceeding 2000
metersOperatingenvlronment temperature:-25℃~+45℃,relatlvehumlditynot exceeding90%
·There are no harmful gases orflammable or exploslve materi←als aroundThe surrounding environment shouldhavegoodventilation conditlons.Ifinstalled in  acabinet,ventilation equipment should beinstalled.

■執行标準Execution standards

IEC289:1987 Reactor
GB10229-88 Reactor(eqvIEC289:1987)JB9644-1999 Reactor used foφr semiconductor electrical driving

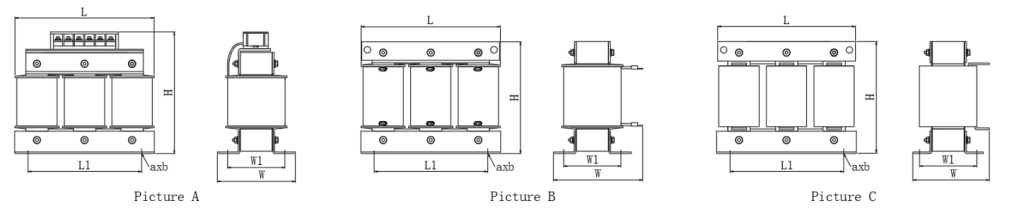

■産品尺寸圖product overview
